I hope you’re all enjoying the fall weather. For those of you in northern states, I hope that you’re getting in some end of season riding. This month I want to touch on bolted joints and the importance of adhering to tightening techniques outlined in your model’s service manual.



How A Clamped Joint Works
I’m going to discuss the importance of criss-cross patterns, tightening sequences, incremental steps, and joint lubrication but first I want to explain how a bolted joint works. As a bolt is tightened to secure a pair of parts, the bolt will stretch a very small amount. The stretch in the bolt creates tension or preload in the joint which is the force that keeps the joint together. The amount of preload created is dependent on bolt size, bolt material, the torque applied, and the friction between the threads. There are additional variables, however a discussion on bolt engineering would be very long and not all that exciting! As long as you understand the basics for engine building you can begin to appreciate the importance of correctly tightening fasteners.



As you are well aware, an engine consists of many parts fastened together. What you may not consider as much is that the majority of these parts are fastened by more than one fastener. This means that how much you tighten/preload one fastener will have an effect on the surrounding fasteners. This interaction between the fasteners begins to shed light on why tightening sequences are so important.



The evenness of the preload across the bolts securing a part can affect part life. Warpage can occur in parts which are improperly tightened, ultimately rendering the part useless. A prime example of a part that can warp is a four-stroke cylinder head. If the bolts are unevenly tightened over time, the cylinder head can become permanently distorted. Gasket sealing problems can also occur from improper preloading of bolts across a part. In order for a gasket to seal it must be evenly compressed. If one area of a gasket is highly compressed and tensioned while another area is not, the gasket can easily leak through the low tensioned area. In the case of plain bearing bores, such as the cam cap, uneven preloading may cause the bearing bore to distort. As a result the cam may become difficult to turn. Or if run, the cam bearing bore will wear unevenly and in severe cases the cam could seize.



While ensuring bolt preload is even can be a problem there are three tightening techniques that virtually eliminate the issue. If you’ve been building engines for any length of time you’ve probably already been utilizing these techniques. Hopefully now you may have a better understanding of why the service manual instructs you to tighten parts a specific way.



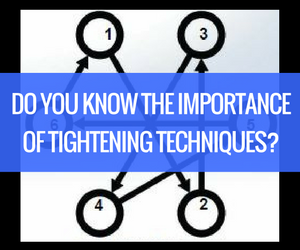

Criss-Cross Patterns
Criss-cross patterns are called out when tightening or loosening parts with a simple square pattern or circular bolt pattern. These basic patterns have been around for a very long time and are a proven method for evenly distributing clamping load across a part. Most cylinder heads will utilize this type of clamping pattern.
index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=357685
Tightening Sequences
For more complex bolt patterns, such as those found on cam carriers and crankcases, the manufacturer will usually identify a specific sequence for tightening and loosening the fasteners. This sequence is based on testing and the past experiences of the manufacturer.



index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=357687



Incremental Steps
Highly torqued bolts, such as those found on the cylinder head, are almost always tightened and loosened in incremental steps. An incremental tightening sequence consists of torquing all the fasteners to a specific torque value, then increasing the torque and tightening again, and finally arriving at the final torque value. This sequence is typically performed in two to three steps.



Here’s something important to keep in mind regarding incremental steps! When torquing bolts in steps the change in torque between the steps must be large enough to induce bolt movement. For example if a bolt was torqued to 35Nm at the first step and the second step was 38Nm this would not be enough of a change to make the bolt move at the second step. The torque wrench would not overcome the friction of the stationary bolt and would hit 38Nm before the bolt even moves. As a rule of thumb incremental changes should be no less than 5Nm and if possible should be greater.



Lubrication
For highly torqued fasteners often times the service manual will specify that the threads of the fastener must be lubricated. The lubricant can be as simple as fresh engine oil or a specifically formulated thread lubricant product.



index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=357689



Adhering to any lubrication guidelines is of utmost importance. Since we most commonly measure torque to determine whether a bolt has been tightened/preloaded enough any change in the amount of force required to turn the bolt will influence the resulting bolt preload for a given torque value. The force required to turn a bolt is partially dependent on the amount of friction in the joint. If we had two identical fasteners where one was lubricated and the other was not, and we set the torque wrench to the same value for each, then both were tightened, the resulting bolt preload would be different between the two. Due to the reduced friction in the lubricated joint the bolt would stretch more and the preload in the joint would be higher at the specified torque wrench setting than the unlubricated joint. Depending on the criticality of the joint this can be a really big deal! It also shows why in some applications (think two piece conrods) directly measuring bolt stretch is a more accurate means of determining bolt preload.



I hope you enjoyed this quick summary of tightening techniques and their importance! If you have tips of your own you’d like to share or other pearls of wisdom please leave a comment.



For those of you interested in more engine building knowledge check out my book, The Four Stroke Dirt Bike Engine Building Handbook. You’ll find more detailed and comprehensive info on engine building there. Simply follow the links below. Thanks for reading and have a great week!



-Paul



index.php?app=core&module=attach&section=attach&attach_rel_module=post&attach_id=357690



The Four Stroke Dirt Bike Engine Building Handbook



Available on Amazon
