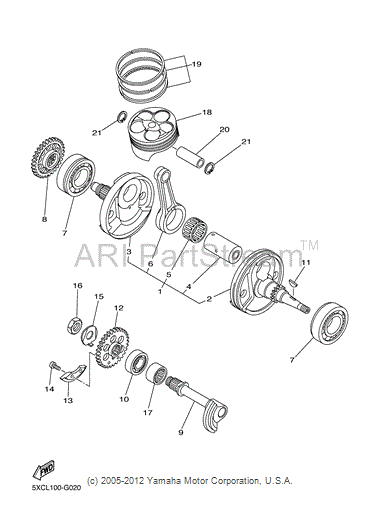

i need the lock washer that would be just to the left of the gear labeled with the eight, i was also going to order another nut that goes on the end of that too. i got the other lock washer thats #15 but theyre different. i cant find it on the yamaha schematic or any of the online stores. thank you!

check out bikebandit or motosport.com hen ur looking for oem parts they have pics just like the one u posted right out of the manual

Its item # 2 and 3 in the clutch assembly of the micro fishe. Here are the part #'s for the nut and washer.

WASHER, LOCK  90215-20003-00

NUT   90179-18001-00

Here is a link to the clutch assembly in the micro fishe.

http://www.mrcycles....2008&fveh=12949

Edited by Charlie755, 11 July 2012 - 10:46 PM.

Thank you Charlie! Guess I wasn't looking hard enough. I looked on the clutch fishe or whatever but didn't catch them on there.

Kfox, on 12 July 2012 - 02:25 PM, said:

Glad I could help. I have spent so many years looking at micro fishes I have learned that sometimes manufacturers "hide" parts where you wouldnt really expect them to be.
