XR Spring Chart


10 replies to this topic
  • volumeone

Posted April 08, 2009 - 10:17 AM

#1

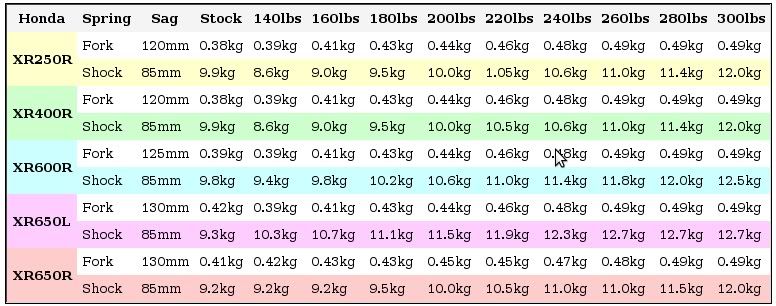

Here is the spring chart for TT:thumbsup:
Posted Image

  • codfish600

Posted April 08, 2009 - 10:41 AM

#2

I nominate this for the FAQ sticky if it isn't already in there!!!

  • mitchn06

Posted April 08, 2009 - 11:35 AM

#3

can the springs be interchanged between models?? XR650R to say a XR600 Stock spring (Xr600 has a higher rate than stock 650r) and i'm 210lbs

  • asf

Posted April 08, 2009 - 11:44 AM

#4

The racetech and eibach recommendations differ from that chart, just FYI

  • codfish600

Posted April 08, 2009 - 12:28 PM

#5

can the springs be interchanged between models?? XR650R to say a XR600 Stock spring (Xr600 has a higher rate than stock 650r) and i'm 210lbs


I guess you would have to find out if the spring dimensions are the same between the bikes

  • cleonard

Posted April 08, 2009 - 01:16 PM

#6

can the springs be interchanged between models?? XR650R to say a XR600 Stock spring (Xr600 has a higher rate than stock 650r) and i'm 210lbs



I'm sure that the 650L and 600R fork springs are interchangeable. The shock is too, but only on the 91 and on 600R I think. Don't think that the 650R springs are swapable.

  • mitchn06

Posted April 08, 2009 - 01:21 PM

#7

I'm sure that the 650L and 600R fork springs are interchangeable. The shock is too, but only on the 91 and on 600R I think. Don't think that the 650R springs are swapable.


just wondering (tryin to take the easy route if i ever see that it is necessary to upgrade) Thanks

  • Kenzo

Posted April 09, 2009 - 05:43 AM

#8

I'm sure that the 650L and 600R fork springs are interchangeable. The shock is too, but only on the 91 and on 600R I think. Don't think that the 650R springs are swapable.



+1 above

racetech and eibach recommendations are said to be a bit on the stiff side more applicable to MX rates.


:thumbsup:

  • EXxrldtgnow300dtg

Posted April 09, 2009 - 06:02 AM

#9

I used the 4strokes chart for my bike. 230#'s w/ gear went Eibach .47 fork springs w/ 10wt oil and a 12 shock spring with a revalve. If you're trail riding, I'd go with what 4strokes reccomends, you're body will thank you becuase it's more plush and less jarring on your wrists and legs. BYW, I also went with a fork brace to make the front track better.

  • Rider Eh

Posted April 09, 2009 - 10:45 AM

#10

How about highlighting what's stock in the bike on the chart? That way we can see if any adjustment is necessary.

  • asf

Posted April 09, 2009 - 12:01 PM

#11

I thought I saw that chart before (no offense intended, volumeone): http://4strokes.com/...da/sprngrts.asp

To me it makes no sense (again no offense intended to the original poster, maybe I am just misreading the chart...). Take the 250. It says the stock forks are sprung for a <140lb rider, but the stock shock is 180-200lb. Look at the XR650L too, stock values say the stock forks are for a 160-180lb rider, but the stock shock is for a <140lb rider. The XR600 and 650R are closer but makes me wonder if the stock values are off or if the weignt recommendations are off, or if the factory actually wants a 40 lb bias on either end.

I had such a hard time deciding on what springs to run on my bike, saw that eibach and racetech suggested two different springs for the same bike and rider weight...and then I found this:
Posted Image.
