[diamond109 TT Bronze Member]

1. Has the left side boot hanging up issue been cured?

2. Who wants to sell me a set of these brackets? TOP DOLLAR PAID!

[manamana TT Member]

diamond109 said:

1. Has the left side boot hanging up issue been cured?

Yes to me, you can force plastic insider...

[Concep29 TT Bronze Member]

1) No hang-ups..a heatgun works wonders to curve plastic.

2) If you use the 450F shrouds, you only need to make the two lower
    backets. Cut out of 1/8" Aluminum.

[diamond109 TT Bronze Member]

Concep29 said:

2) If you use the 450F shrouds, you only need to make the two lower backets. Cut out of 1/8" Aluminum.

Hmmmm. Well, you see, I'm not exactly a machinist so if anyone has templates that I can take somewhere or can fabricate me a set, I'd be willing to pay them for their time

I love the look.... Can anyone help a brother out?

[timo38 TT Bronze Member]

would it be possible to get dimensions for these brackets?

i have access to milling machines and would really like to fab some up,

[swazi_matt TT Member]

any special reason for fitting a yz pipe?  PS like the plastics, i have also been thinking that the std kx plastics look a bit lame

[mxkawiracer TT Member]

hey Concep29 what seat is that on ur bike and what year bike is it, i have an 04 and want ot use the 450 shrouds and a step seat, do u have any pics of  the brackets for the shrouds

[zared TT Bronze Member]

looks good:thumbsup:

[Concep29 TT Bronze Member]

mxkawiracer said:

hey Concep29 what seat is that on ur bike and what year bike is it, i have an 04 and want ot use the 450 shrouds and a step seat, do u have any pics of  the brackets for the shrouds

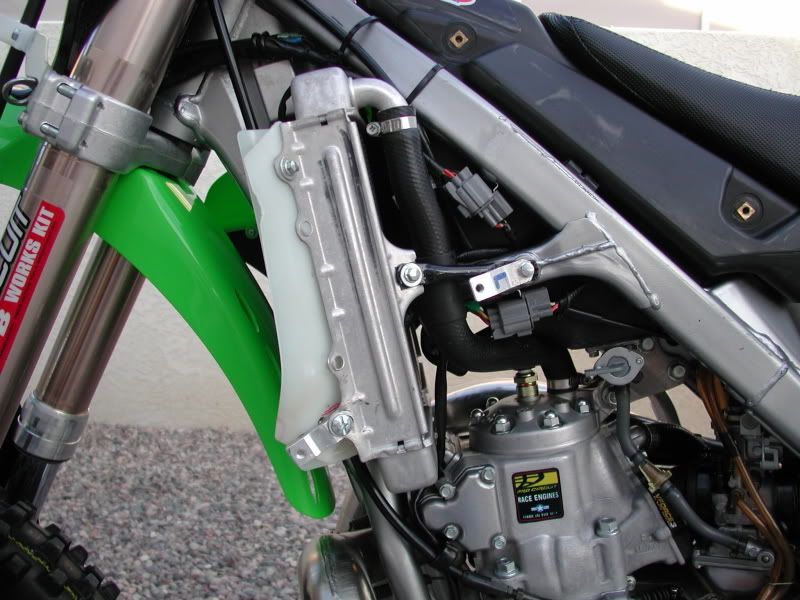

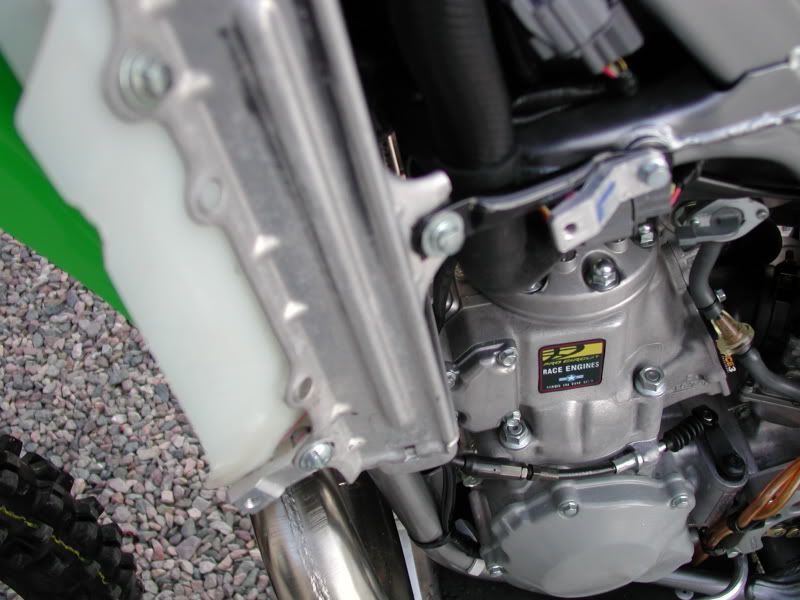

The Seat is an SDG tall that I shaved down for the step. Bike is a 03. Couple pics of the 450 shroud brackets - note that you will have to heat and bend or shave off the lower portion of the plastic rad guard for best fit. Someone else made the brackets for me. Hope that helps.

[rsl47m TT Member]

I want brackets please!!!  Sell them Please!

[kawamaha TT Titanium Member]

Concep29 said:

My 450F shroud conversion, thanks to Kawamaha for the bracket help

damn, your bike looks sweet! you know, I am not satiesfied with mine because I received the wrong colour (black-green instead of green-black) but still waiting for the 2009 shrouds and side panels...

seems some guys out there want brackets?
I can make them, but it will take me lots of time and isn't cheap. Concep29 knows it

if you are interested, send me a pm.
kawamaha

[mkoch940 TT Newbie]

So can we get some dimensions or plans for these brackets posted?

[kawamaha TT Titanium Member]

mkoch940 said:

So can we get some dimensions or plans for these brackets posted?

well, the reason I don't post it yet is that every request I received was about making the brackets. if you are able to mill them I think it's no problem to  make a metal sheet sample within a few minutes. for me it takes more time to show a plan here, but lets see what I can do...

@concep29:
are your plastics genuine green (I guess) or flo green, they look really vibrant, nice!!

note: I think you can't see my pics no more, that's because I modified my provider contract. then they killed my homepage...

[seth505 TT Bronze Member]

I like these shrouds...look very nice, now I'm thinking haha

[mxrk TT Member]

If you decide to sell the brackets, I'll be ready to send cash!!!

[Concep29 TT Bronze Member]

Hey Kawamaha, the shrouds I used are oem, off my 07 450. Oem plastic looks good and is hard to beat.

My advice to those who want brackets: hire Kawamaha to build you a set, (as I did)  or spend some time and build them yourself! There are many pictures of the brackets posted. My bike was a frame up build and I didn't have time do it all myself.

[rsl47m TT Member]

Please post a price for the brackets.

thanks

[miek_g TT Bronze Member]

Heres a pic of my prototype brackets,  I created them from some scrap Toyota 4x4 fuel line,  compresed the ends with a vise and drilled a couple of holes.

Cheap and easy.  note they are prototypes but ???  who knows no one is going see them

####  UPDATE BELOW contains sizing  ###
shroud bracket update:

the Toyota fuel line for a 1990 pickup 4x4 4cyl
cut 60mm of line off per side
in a bench vise (I used a wood vise as it is smoother) squeeze 20mm either side flat
bend 1 flat up to a 60 degree angle
line bracket up on the bike and make note of the angle the shroud attaches.

you will need to make a twist of aprx 75 degrees to make the bracket and shroud sit flush.
to do this I placed the bracket in a vise and twisted the other side wih an adjustable wrench.
mark holes and drill.

[miek_g TT Bronze Member]

this is the project so far.
thanks for the 450 shroud tip:)

I am also putting the KX450F tripple clamps on,  the top clamp is off for machining as they are smaller on the 450

[zwazuski TT Member]

I am thinking about putting 450 shrouds on my 05 kx250. If i do that and buy a graphics kit for the 450 does anyone know how the fender graphics will turn out? I believe the 450's are more rounded correct?
