KTM WHEEL FITMENT The how to “BIG PICS”



66 replies to this topic
  • Camo Dave

    TT Silver Member

575 posts
Location: California

Posted March 12, 2007 - 12:05 AM


EDIT "Rear hubs are all the same from 1992 to 2007 125 on up
The 125s and 250s got the right hub as of 1990 but the bigger bikes didn't use them till 1992."


KTM wheels FIT. I have had people asking me about this for quite some time now so I thought id throw this together.


First YES KTM wheels fit.

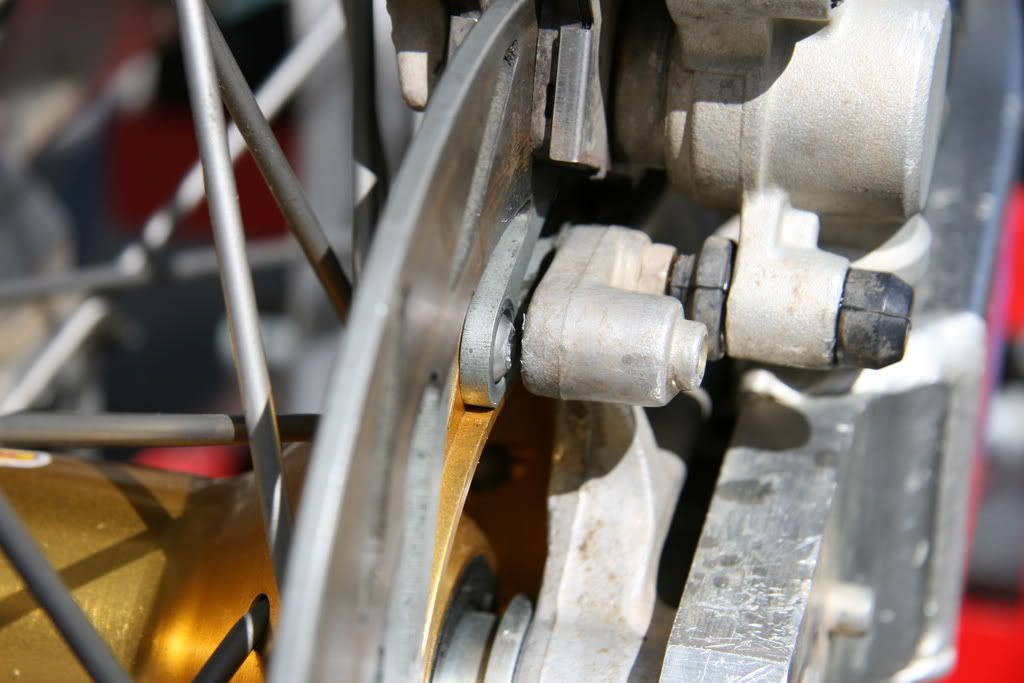

Rear hubs are all the same from 1990 to 2007 125 on up. Only difference is Cush drive or not and rim size. I now have 3 different KTM rear wheels that I run A 17” 18” and 19”. The 18” is from a 1995 LC4. The 19” is actually a tallen hub but its for a 2002 KTM 400. The 17 is from a 2004 4XX (don’t remember). I have take pics of all the different rear wheels on my bike to show. Notice that the 18” and 17” both have the cush drive hub. The spacers rotors and sprockets are all stock KTM. This is a direct bolt up fitment. Do note that the KTM rear rotor is the same size as a 400S/E 220mm.

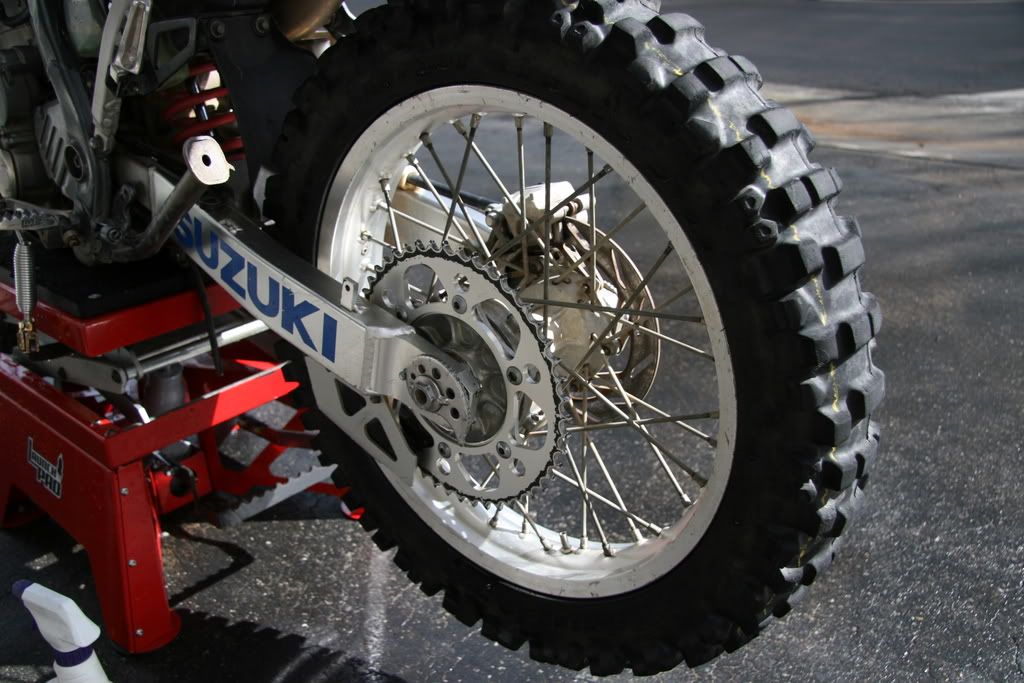

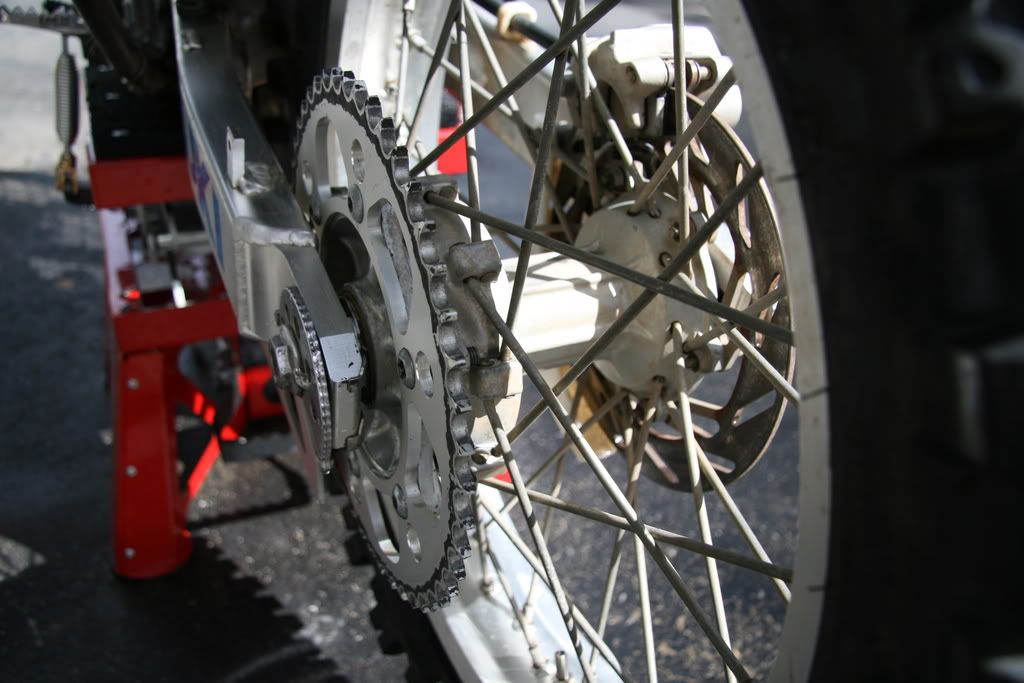

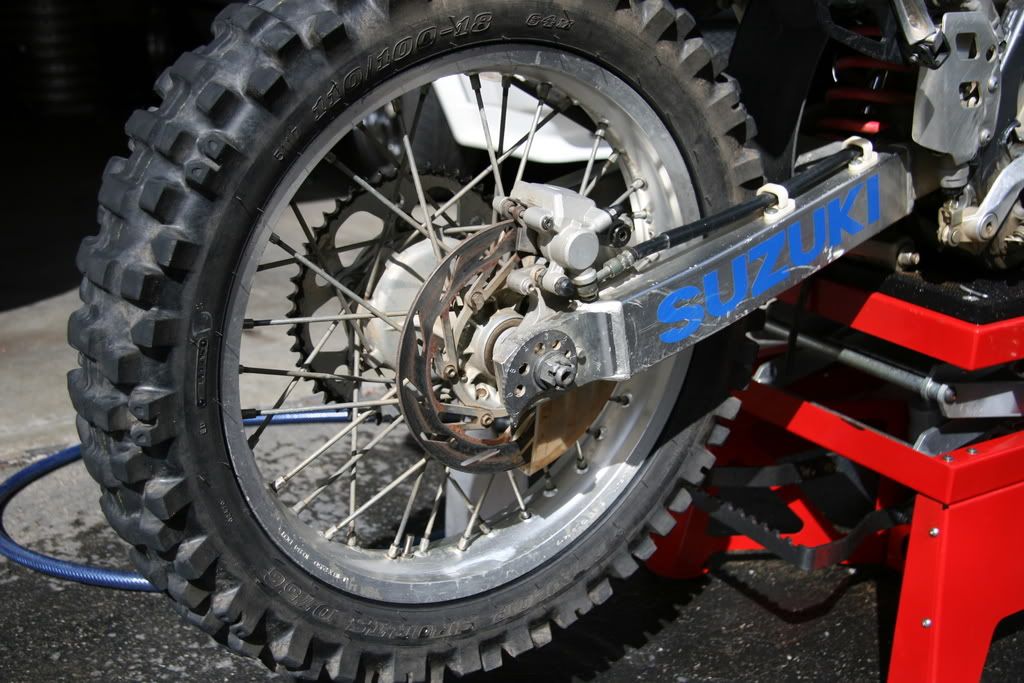

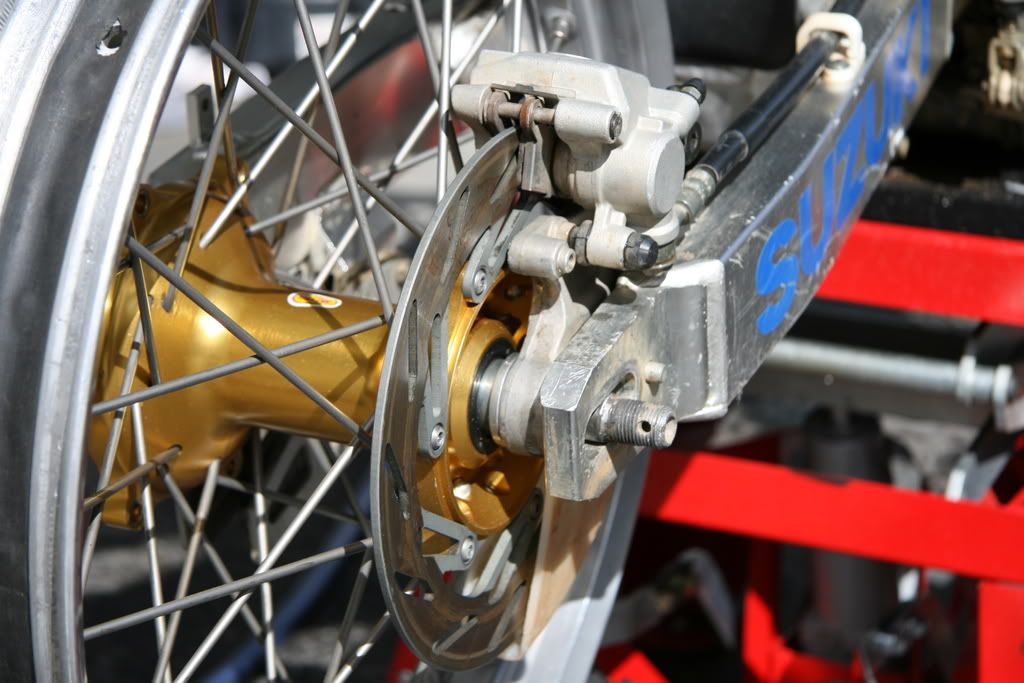

The 18”
Posted Image

Posted Image

Posted Image

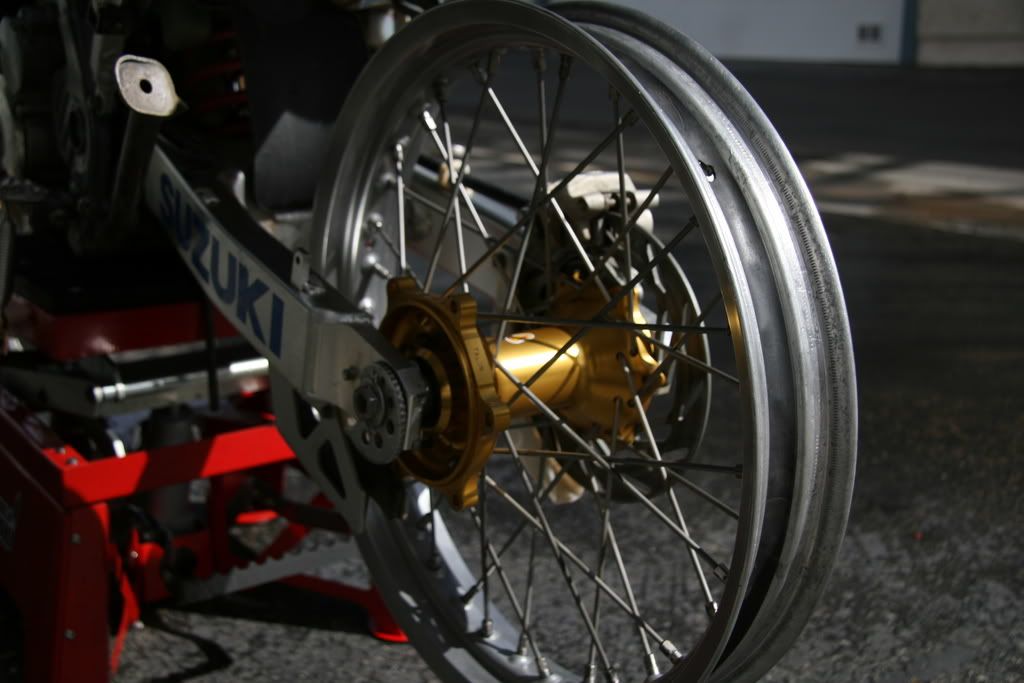

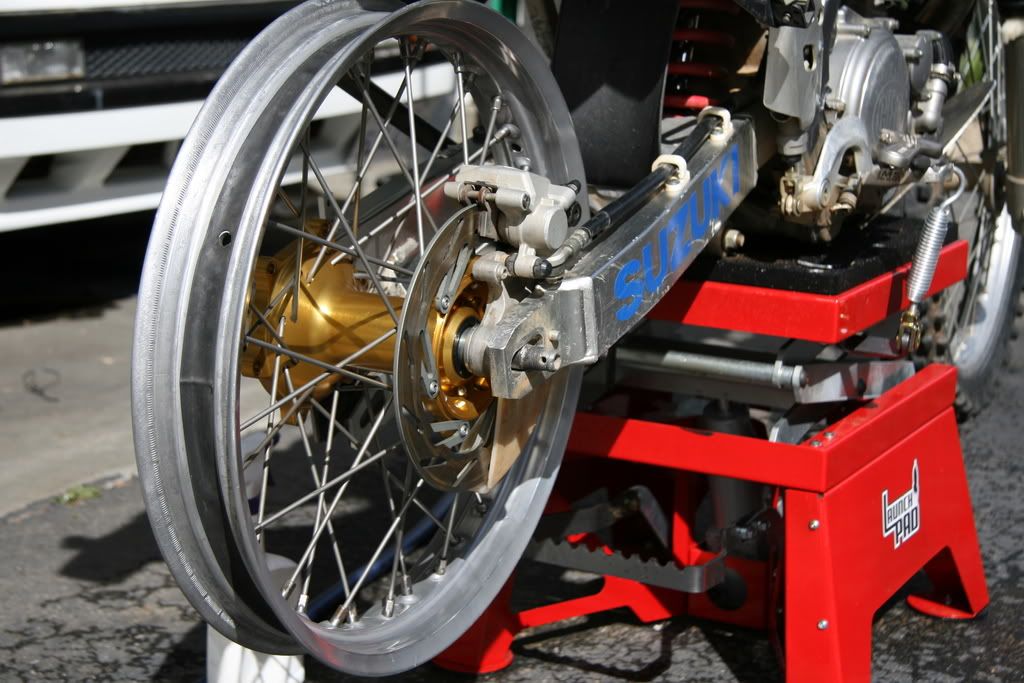

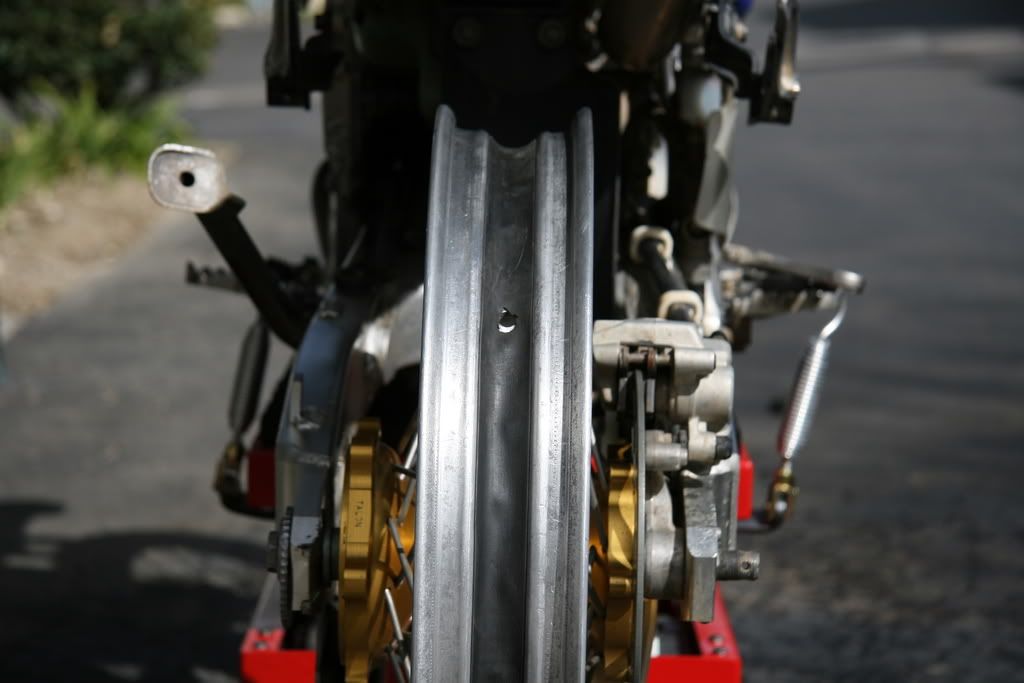

The 19”
Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

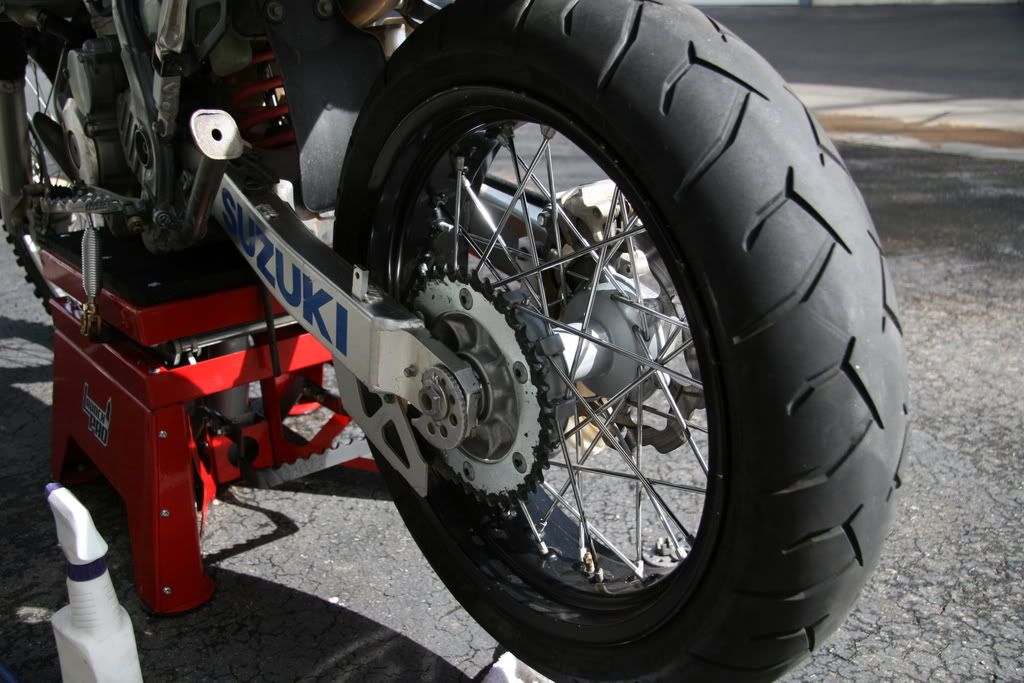

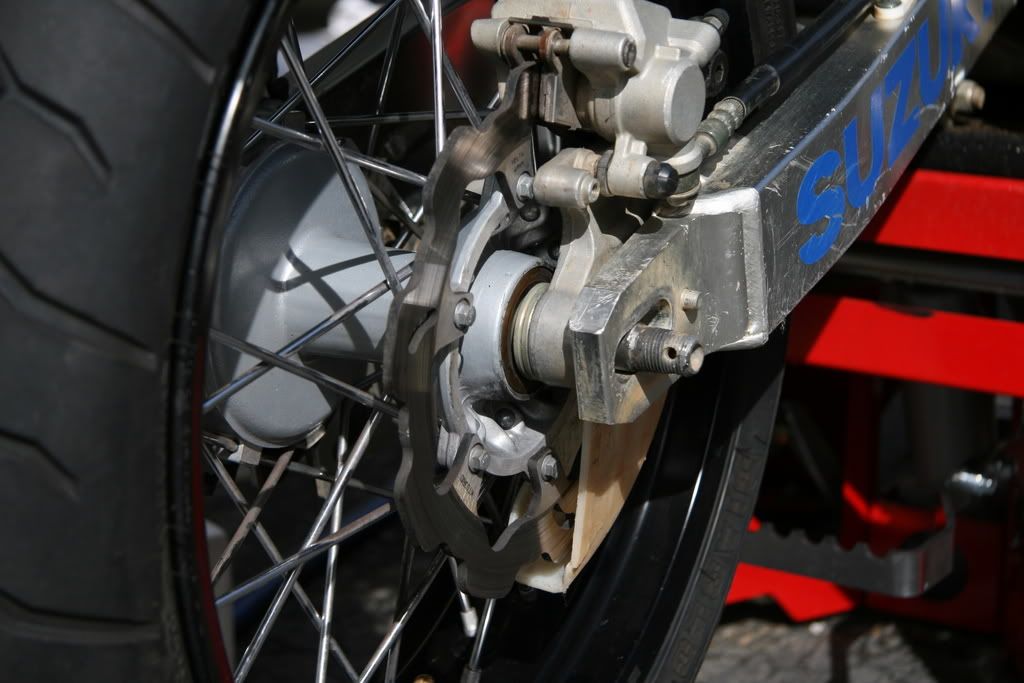

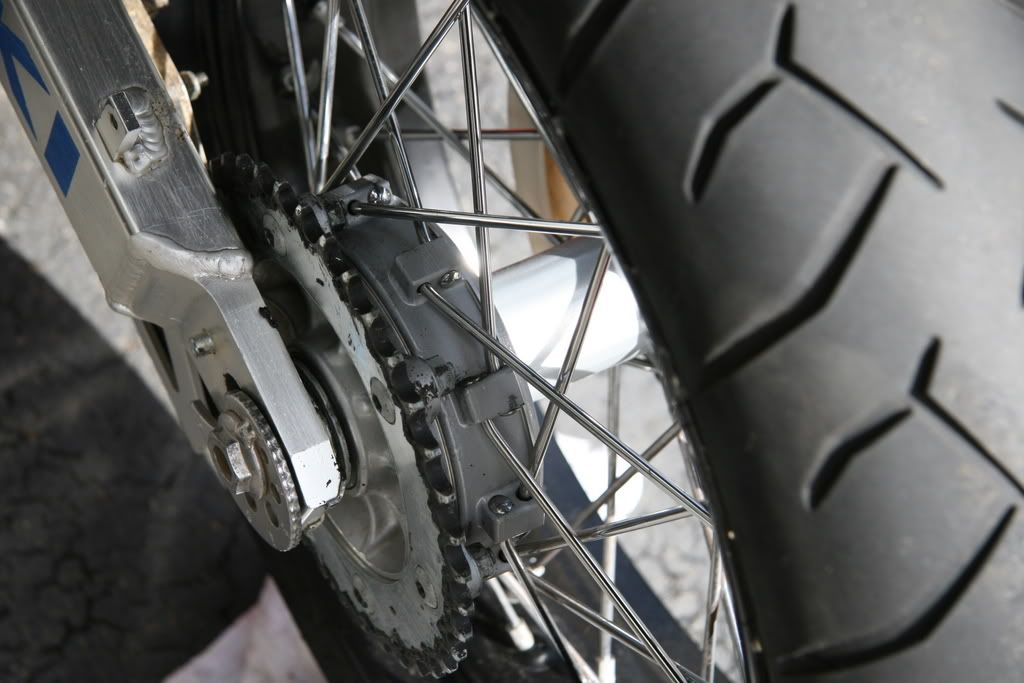

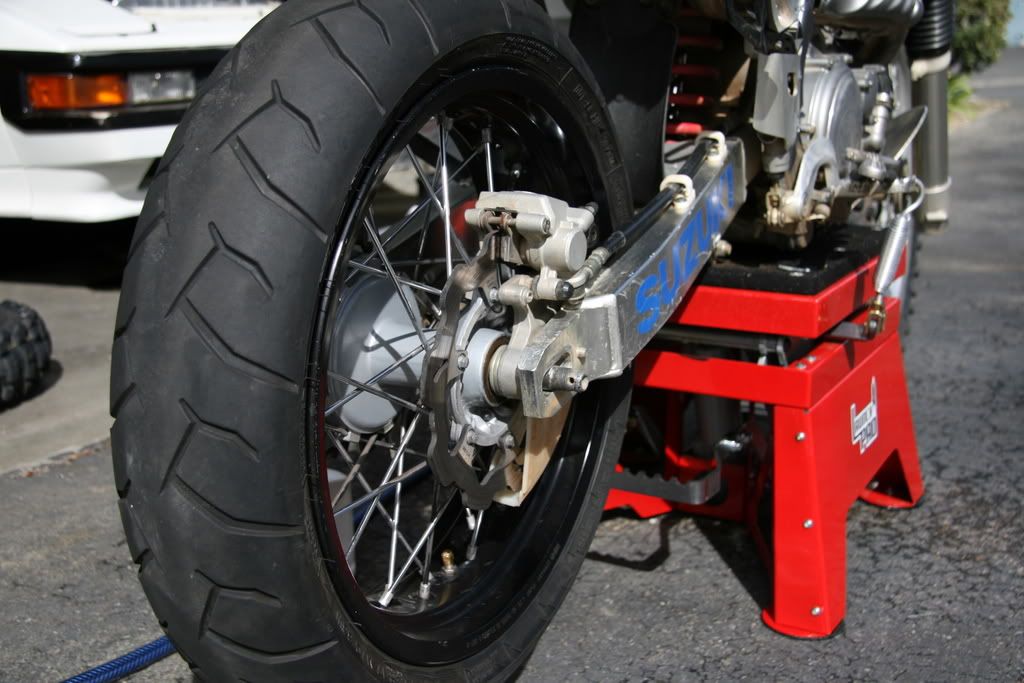

The 17”
Posted Image

Posted Image

Posted Image

Posted Image

This post has been promoted to a wiki
  • BobbyC, Cuchara Red and Smias like this
  • Like This

  • Camo Dave

    TT Silver Member

575 posts
Location: California

Posted March 12, 2007 - 12:05 AM


Now the front setup that’s a bit harder. Not much but not a strait swap It requers custom spacers and a rotor adapter BUT KTM rotor. The Front KTM hubs were 20mm axel just like a DRZ but in 2003 they changed them to a 26mm axel. So if you get a Front hub that is a 20mm all you have to do is make spacers that line up the rotor with the caliper rufly the same as the stock drz spacers. If you get a 2003 + front hub you have to make spacers that convert it to a 20mm axel and line up the rotor with the caliper. I only have one KTM front wheel and it’s a 26mm setup. So I made some spacers to fit. I left the stock KTM spacers in the front wheel and just made spacers to fit in the spacers as you can see in the following shots.









17” 26mm axel hub.

Posted Image

Posted Image

Posted Image

Posted Image

Custom Front wheel spacers
Posted Image

As for rotor adapters I ride dirt 21/18 and SM 17s. I swap out wheels one or two times a week so I went with the same size rotor for my SM and dirt setup. The stock KTM rotor is 260mm and the MOTO MASTER off road oversized rotor is 260mm. So I got the Moto Master DRZ front rotor (TT store 1711-0172) and adapter (TT store 1701-0084) so my SM (KTM) and dirt (DRZ) front rotors are the same size 260mm. If you wont to go 310mm or 320mm just get a DRZ Rotor adapter and a KTM rotor and now the pics
O my front dirt rim is form a RM so no snail thing. I have a Trail Tech Vapor.
Posted Image

Posted Image

Posted Image
LOL in the end I don’t have any DRZ wheels just KTM and RM. Any way hope this helps someone.

Posted Image

Posted Image

Posted Image

  • KVO-TN1-2beat

    TT Gold Member

1,360 posts
Location: Tennessee

Posted March 12, 2007 - 05:56 AM


DO the sprockets line up exactly?

  • Camo Dave

    TT Silver Member

575 posts
Location: California

Posted March 12, 2007 - 09:50 AM


Yep














Posted Image

  • Cuchara Red

    TT Gold Member

1,064 posts
Location: Texas
Garage View Garage

Posted March 12, 2007 - 10:19 AM


Nicely done. :applause: Good pics also. It's good to know that we do have some options out there. Maybe this will let some of us cheepskates get some wheels at a better deal.

Thanks again for taking the time to post this thread.

  • KVO-TN1-2beat

    TT Gold Member

1,360 posts
Location: Tennessee

Posted March 12, 2007 - 10:26 AM


Nicely done. :applause: Good pics also. It's good to know that we do have some options out there. Maybe this will let some of us cheepskates get some wheels at a better deal.

Thanks again for taking the time to post this thread.


HA! Don't you know that the cost of KTM wheels just went up at least 25%? :lol:

Watch ebay, now that we know they will fit, they'll be going for a premium like the DRZ wheels.

  • Bear on a bicycle

    TT Gold Member

1,178 posts
Location: North Carolina

Posted March 12, 2007 - 12:05 PM


HA! Don't you know that the cost of KTM wheels just went up at least 25%? :lol:

Watch ebay, now that we know they will fit, they'll be going for a premium like the DRZ wheels.




...Ain't it the truth!!:lol:

Great write up & pics! Nice work with the spacers, especially the diagram. :applause:

What are you doing for a speedo?

  • Camo Dave

    TT Silver Member

575 posts
Location: California

Posted March 12, 2007 - 12:29 PM


I have a Trail Tech Vapor

  • Rib Eye
1,573 posts
Location: California

Posted March 12, 2007 - 06:44 PM


Also, bear in mind that KTM wheels come with 26mm and 20mm axles.

We need to buy wheels with the 20mm axle for the DRZ.

  • Ivanhoe

    TT Bronze Member

412 posts
Location: California

Posted March 13, 2007 - 11:11 AM


Being a newb, I must ask this : what is the advantage to using a KTM wheel/ wheelset? Price? quality? availability?

  • Rib Eye
1,573 posts
Location: California

Posted March 13, 2007 - 12:08 PM


It's just another option for wheels. There's not much available in the used market for the DRZ take off wheels, and what is available on ebay is bid up pretty fast.

  • Camo Dave

    TT Silver Member

575 posts
Location: California

Posted March 13, 2007 - 12:18 PM


Also, bear in mind that KTM wheels come with 26mm and 20mm axles.

We need to buy wheels with the 20mm axle for the DRZ.


Did you read the whole thing? That was covered in the second post.





And to the Y go with KTM wheels its just another source of wheels that fit the DRZ. That’s all.

  • Ivanhoe

    TT Bronze Member

412 posts
Location: California

Posted March 13, 2007 - 02:40 PM


Thanks for the heads up. Great pics by the way!

  • pdx_drz400

    TT Gold Member

1,047 posts
Location: Washington

Posted March 13, 2007 - 03:15 PM


Great find! thanks for posting :applause:

  • KVO-TN1-2beat

    TT Gold Member

1,360 posts
Location: Tennessee

Posted March 15, 2007 - 10:58 PM


So next thing is for someone to find out how to fit KTM forks on the DRZ. What size are the KTM forks on what bikes???

It owuld be cool if you could get a set of KTM inverts to fit in a set of RM triples. You'd be set then.

  • Camo Dave

    TT Silver Member

575 posts
Location: California

Posted April 02, 2007 - 07:21 PM


you know i mite just have to look into that.

  • Little Joe SM

    TT Newbie

19 posts
Location: North Carolina

Posted April 04, 2007 - 12:58 PM


Great info. Thanks a ton.

  • DRpuckheadZ

    TT Gold Member

1,078 posts
Location: Iowa

Posted April 04, 2007 - 03:43 PM


nice job on the write up!

  • KTM-Lew

    TT Titanium Member

2,827 posts
Location: North Carolina

Posted April 04, 2007 - 05:18 PM


This is a very timely post as I just put DRZ forks on a KTM. Used an RM wheel but would prefer to use the 03 up KTM wheel. You have done the engineering for me on the spacers!!!:bonk: :naughty:

  • another drz guy

    Get Help Now

5,293 posts
Location: California

Posted April 04, 2007 - 05:57 PM


Fantanstic pics!
